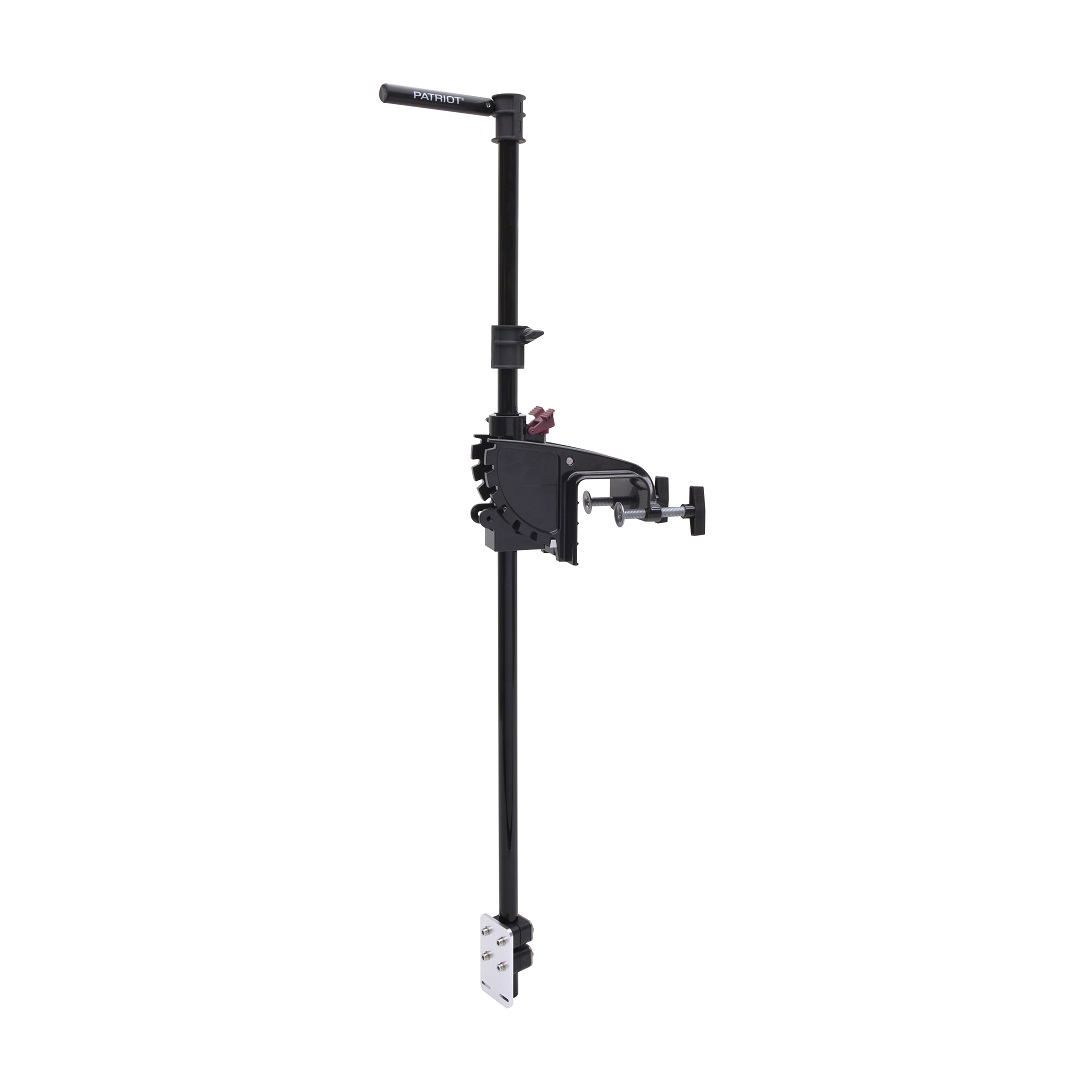

Patriot MultiFix 360 sensor stand

Patriot MultiFix 360 sensor stand

The robust and easy to move Patriot MultiFix sensor mount is designed to be compatible with all different sonar sensors. The aluminum mounting plate at the lower end of the sensor holder has a ready-made hole division for the most common oblique and perforated sensors. In addition to transom-mounted sensors, various "live" sensors (eg Lowrance ActiveTarget & LiveSight) can also be attached directly to the mounting rig tube. The height and rotation of the Patriot MultiFix sensor stand can be adjusted completely steplessly with the help of a quick lock in the mounting bracket. The top of the sensor stand tube also has a second steplessly adjustable quick fitting and a control handle that allows the stand to be rotated steplessly 360 degrees when using a "live" sensor.
The handle at the top is also attached to the tube with a quick fitting, so it can be easily removed if you do not need to rotate the sensor.

The Patriot MultiFix sensor stand is designed for as many different boats and applications as possible and has a stable mounting bracket in a metal frame with 7-step tilt angle adjustment, and a sufficiently long (115 cm) composite rig tube that can also be easily shortened to fit your boat. No tools are required to attach the Patriot MultiFix sensor stand to the boat and it can be mounted on the side or transom of all boats with a maximum width of 82 mm. With the easy-to-move Patriot MultiFix sensor stand, the same sensor and sonar can be used on different boats. By, for example, attaching the Patriot MultiFix Sensor Stand to the side of the sledge, the same stand can also be used well in winter use.

• Robust mounting bracket in metal

• Maximum mounting point thickness 82 mm (eg railing / transom)

• 7-step tilt angle adjustment

• Durable composite rig pipe

• The length of the rig tube is 115cm

• Rig tube diameter 25mm

• Stepless height adjustment

• Stepless rotation adjustment 360 degrees

• Detachable handle at the top

• Lockable to desired position

• Quick adjustment thanks to quick clamps

• No tools are required to install the stand

• Finished hole division in the mounting plate for all the most common transom sensors

• Live sensor can be installed directly on the tube (eg Lowrance ActiveTarget & LiveSight)

• Ideal for vertical jigs

• Ideal for live sensors

• Also suitable for winter use, for example when connected to a sledge
