Patriot LiveFix 360 sensor mount

Patriot LiveFix 360 sensor mount

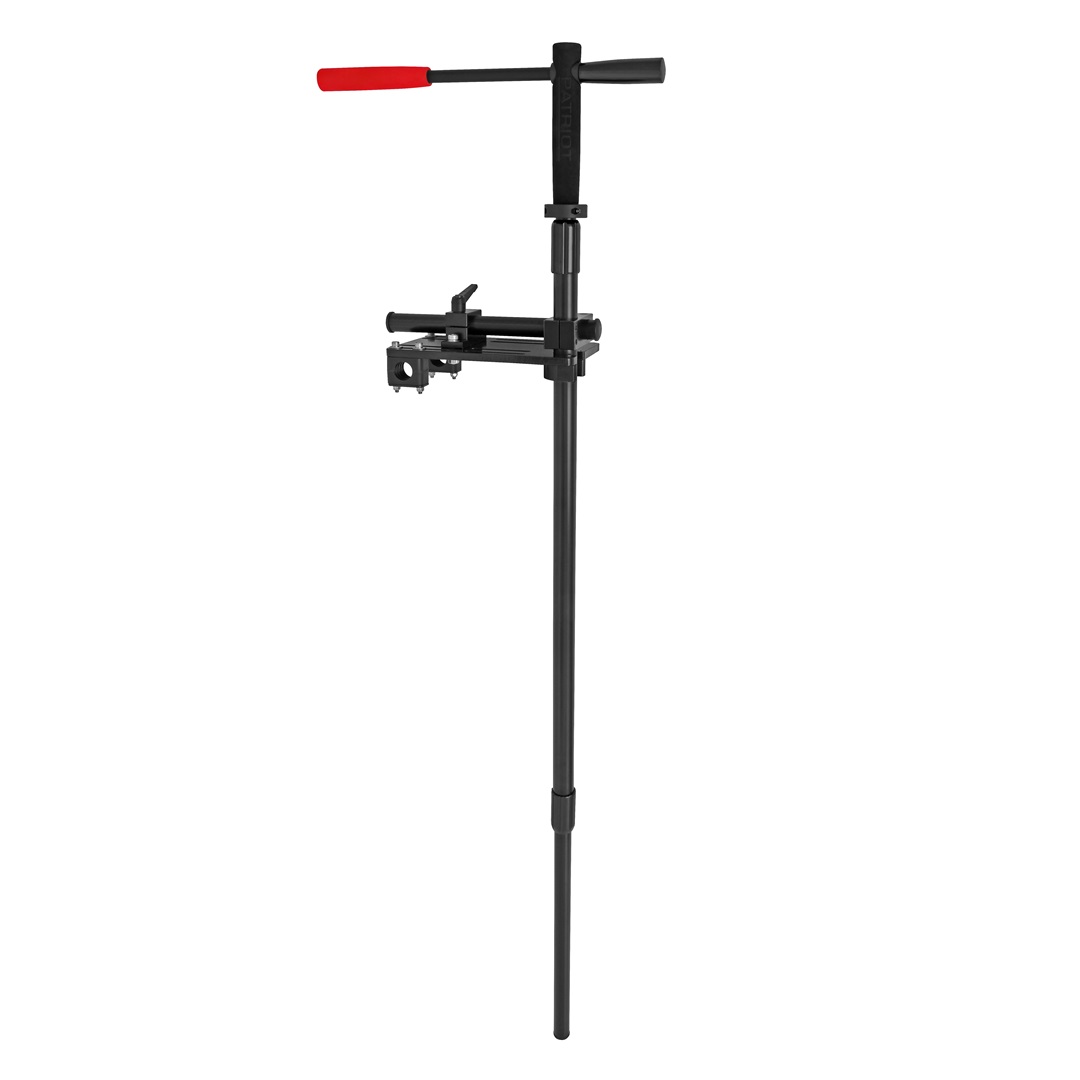

The Patriot LiveFix 360 is a robust aluminum sensor holder for sonar use. Thanks to the very versatile adjustment and attachment options, the Patriot LiveFix is ​​suitable for installation on almost all types of boats.

The Patriot LiveFix 360 sensor holder is designed to be installed either on a rail, fixed on a plane, or on a mounting rail that runs along the inside of the boat (rail mount option). Thanks to the adjustment grooves in the mounting table of the sensor stand, it is possible to adjust the mounting point and distance of the stand to be optimal for different boats. Thanks to sufficient adjustments, the Patriot LiveFix is ​​also suitable for installation on most boats with wider sides, such as Buster, Silver and Faster brand boats.

The versatile adjustments and adaptability of the Patriot LiveFix 360 sensor mount means that the mount can be installed on both smaller and slightly larger boats. The sensor tube is made of aluminum, so it is very easy to work and if necessary shorten it to the right size for smaller boats. In standard size, the sensor tube is long enough (150 cm) to reach below the bottom line even in slightly larger and higher sides. It is also easy to adjust the height of the sensor tube by raising it slightly upwards, so that e.g. turning the rack from the casting platform in a fishing situation can be reached.

The carefully considered features and details of the Patriot LiveFix 360 Sensor Stand make the stand easy to use. When you lower the stand to the lower position, the sensor tube locks into its own supported bracket and a light tightening of the locking lever is all it takes. In the lower position, the pipe sits firmly in the frame and does not become twisted and warped, but the holder always stays in the correct position. In a sonar situation, the sensor holder's rotational resistance can be fine-tuned using the adjustment nut at the upper end of the holder. The sufficiently long and attentive pointing handle helps to easily sense the direction of the sensor even from a little further away. When the sensor holder is raised to the transport position, it is securely locked in the horizontal plane to rest on the mounting table, after which a slight tightening of the locking levers is sufficient. It is possible to completely remove the sensor tube from the mounting table during storage and transport, so that no other parts get stuck in the boat. The sensor tube can also be turned inside the sides of the boat for protection, for example when towing a trailer.

Patriot LiveFix 360 is designed to work e.g. Lowrance Active Target, Garmin Panoptix Livescope and Humminbird Mega Live with sensors.

• Stable and light aluminum construction

• Versatile adjustment and attachment options

• Stable 10 mm thick aluminum mounting table with adjustment groove

• In the lower position, the sensor tube locks into the supported bracket and always stays in the correct position

• In the upper position, the sensor tube is securely locked horizontally to the mounting table

• Quick lock lever for quick and easy use

• Can be installed on a railing, platform or rail (rail mount optional)

• Includes mounting hardware for railing installation (25mm / 1" pipe)

• Detachable touch handle

• The sensor tube can be removed so that only the mounting table remains in the boat

• The sensor tube can be turned inside the side of the boat, for example when towing a trailer

• Infinitely adjustable height

• Continuously adjustable rotation resistance

• The total length of the sensor tube is 150 cm

• The sensor tube is designed to be shortened to a suitable length for each boat

• Sensor tube diameter 25 mm / 1"

• The inner tube structure allows the cable to be attached to the outer tube

• Stainless steel bolts and fasteners

• Suitable for installation on almost all types of boats

• Designed for use e.g. Lowrance Active Target, Garmin Panoptix Livescope and Humminbird Mega Live with sensors
