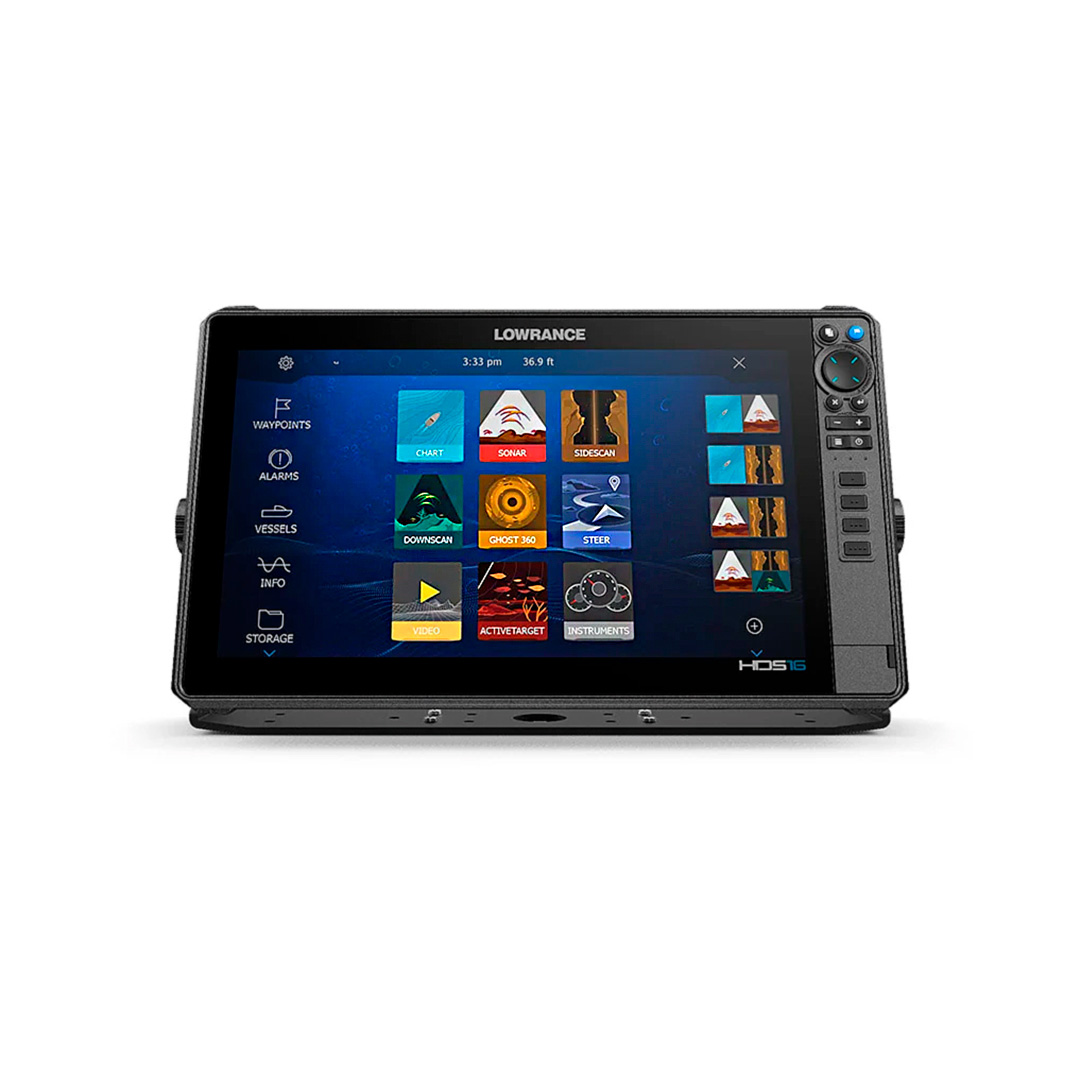

Lowrance HDS Pro combo unit with 16" Active Imaging 3-in-1 HD sensor

Lowrance HDS Pro combo unit with 16" Active Imaging 3-in-1 HD sensor

Experience an unprecedented level of sonar with the new Lowrance HDS PRO series units. With the HDS PRO series of devices, you get access to the latest sonar technology, allowing you to see more and more accurately than ever before!

The Lowrance HDS PRO continues on the same path as its predecessors, offering innovative and even better features in all aspects of sonar. With the HDS PRO device you can use the ActiveTarget 2 Live sonar, the renewed Active Imaging HD and Active Imaging HD FishReveal* sonar and a true 2-channel 1kW CHIRP sonar.

Lowrance HDS PRO supports ActiveTarget 2 Live sonar, the latest version of the award-winning ActiveTarget live sonar. Compared to its predecessor, the ActiveTarget 2 Live sonar offers an even better range and an amazing ability to distinguish targets and structures, taking fishing to an unprecedented level. The HDS PRO unit can use up to two ActiveTarget 2 live sonar simultaneously, allowing for a stunning 270 ScoutWide view around the boat, a 180 forward and aft view, or a simultaneous scout and forward view on the same screen.

With the new high-resolution Active Imaging HD sensor, you can search for fish with unprecedented precision. The renewed Active Imaging HD sonar sensors offer an incredibly high resolution sidescan (1075kHz) mega CHIRP frequency sonar, a mega CHIRP DownScan (1225kHz) downscan sonar and a top-level 2D CHIRP sonar. The Lowrance HDS PRO range of devices also supports the new FishReveal SideScan sonar, making it easier than ever to spot fish from a side scan view. FishReveal sonar requires a Lowrance S3100 sonar module and a FishReveal compatible Active Imaging HD sensor to function.

The high-performance Lowrance HDS PRO is equipped with an even more powerful processor, around which the most comprehensive Lowrance fishing system of all time can be created. Lowrance HDS PRO always works quickly and smoothly, even if you use several different navigation functions and sonar views at the same time. In addition to a wide selection of sonar, many other functions can be integrated into the HDS PRO unit, such as for example an autopilot, a Lowrance or Motorguide bow motor, a VHF telephone, a radar, a sound system or a Power Pole - shallow water anchor.

HDS PRO supports all of Lowrance's latest navigation functions, including e.g. C-MAP Easy Routing and Navionics Autorouting features and real-time C-MAP Genesis Live mapping. With the built-in real-time Genesis Live chart feature, you can even create your own maps of your favorite fishing spots or bodies of water that don't have a detailed depth chart. You can record your own more precise maps, where the contours are displayed with an accuracy of up to 15 cm
in real time on your sonar screen. Recordings can be created over existing C-MAP map data or on a blank memory card.

Thanks to the high resolution SolarMAX HD display, the HDS PRO unit's image quality and views of fish and bottom structures are unsurpassed. In addition, the map information and echo views on the screen can be seen crystal clear from all viewing angles, even in direct sunlight and through polarized sunglasses.

The HDS PRO with multi-touch screen is a really easy-to-use and versatile combination device for fishing and all types of boating and navigation. Lowrance HDS PRO gives you information that makes your boating on the water safe and enjoyable. You can easily monitor the chart, depth readings, position data, radar data, battery voltage and other critical data on the boat on the same screen, so you always have a quick overview of the current situation.

The main features:

• 16" high-resolution SolarMAX HD multi-touch screen with the widest viewing angles - visible even in direct sunlight and through polarized sunglasses

• Active Imaging HD 3-in-1 and 2-in-1 (CHIRP/SideScan/DownScan Imaging) compatible

• Active Imaging FishReveal HD 3-in-1 compatible (FishReveal SideScan feature additionally requires a separate S3100 sonar module)

• ActiveTarget 2 compatible (also supports the previous generation ActiveTarget sensor)

• Supports the use of two ActiveTarget 2 probes on the same screen

• Scout, Ghost 360 and SideScan overlay view on top of map view

• Intelligent FishReveal feature in DownScan and SideScan* views (*FishReveal SideScan feature requires separate S3100 sonar module and Active Imaging FishReveal HD sensor to function)

• True two-channel CHIRP

• Built-in CHIRP and broadband sound

• Thanks to improved attenuation of surface noise, you can see more fish that are close to the surface

• Expanded chart and sonar views

• Real-time C-MAP Genesis Live depth data mapping

• C-MAP Easy Routing and Navionics Autorouting compatible

• Chart options include, for example, C-MAP DISCOVER, C-MAP REVEAL and Navionics charts

• The system can be controlled from a multi-touch screen and a quick-to-use keyboard

• Programmable hotkeys according to the user's own needs (on 10", 12" & 16" screens)

• Lowrance Outboard Pilot autopilot control and management from the touchscreen

• Control and manage the Lowrance Ghost bow electric motor from the touch screen

• MotorGuide Xi3 and Xi5 - control and management of bow electric motor from the touch screen

• Touch screen control and management of Power-Pole shallow water anchors

• Compatibility with Lowrance HALO probes

• Compatibility with Lowrance LINK VHF phones

• NMEA 2000 support for outboards

• Wireless Wi-Fi connection and Bluetooth connection

• Smartphone notifications

• LiveCast smartphone integration (only on 12" and 16" screens)

• GPS: 10Hz GPS/GLONASS WAAS/EGNOS/MSAS

• Simple flush mounting or mounting bracket

• USB charging port (only on 12" and 16" screens)

• HDMI port (only on 12" & 16" screens)

• NMEA 2000 Micro-C port

• 2 x 9-pin sonar port

• 2 x Ethernet communication ports

• 2 x micro SD card slot (max. 32 GB)

• Internal memory 8GB

• Storage: 3000 waypoints, 100 routes & 100 tracks

• Waterproof class IPX7

• Screen resolution 1920 x 1080 Full HD

• Screen brightness > 1200 nits

• Operating temperature range -15 C to +55 C

• Operating voltage 12V DC (10.8-17VDC)

• Typical current consumption 3.0A @ 13VDC

• Max. current consumption 4.1A @ 13VDC

The package includes:

• 16" HDS PRO combination unit

• Active Imaging 3-in-1 HD sensor

• Screen protector

• Mounting bracket

• Power cord and fuse

• User manual (English instructions are available for download at www.lowrance.com)
